彩钢瓦屋顶光伏支架系统
Color steel tile roof photovoltaic support system
安装地点 Installation Place | 彩钢瓦屋面 Colorful Steel tile Rooftop |
安装角度 Installation Angle | 与屋面平行 Parallel with Roof |
风荷载 Wind Load | 42m/s |
雪荷载 Snow Load | 1.4KN/㎡ |
电池板排列形式 Panels Arrangement | 横向或纵向 Landscape or Portrait |
设计标准 Design Standard | AS/NZS1170, DIN1055, JIS C 8955:2011 |
型材材质 Material | AL6005-T5(本色阳极氧化 Anodized) |
紧固件材质 Fastener Material | 不锈钢 Stainless Steel SUS304 |
配件材质 Component Material | AL6005-T5I本色阳极氧化 Anodized)，不锈钢 Stainless Steel SUS304 |
质保 Warranty | 10年 10years |
安装说明及注意事项
Installation setps-

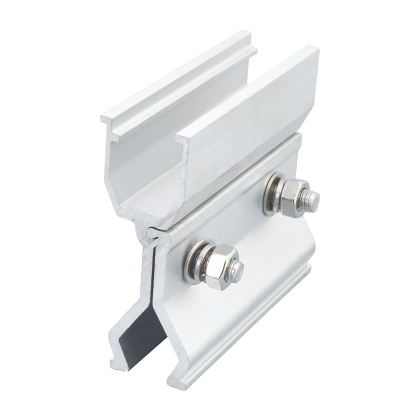

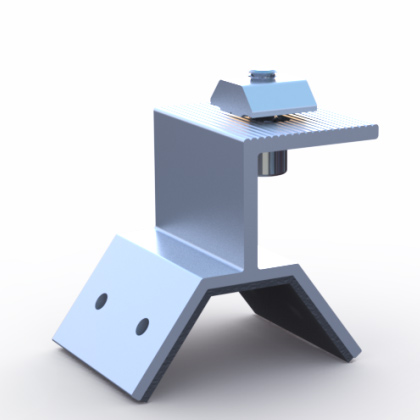

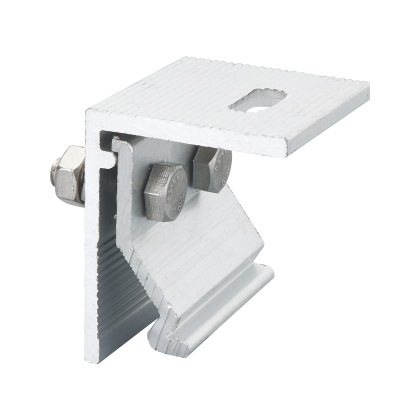

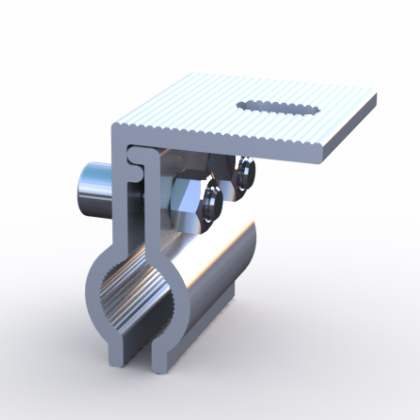

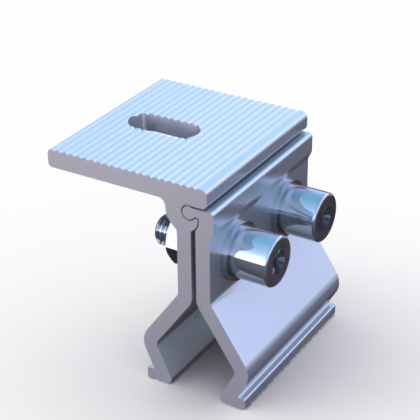

1用自攻钉将梯形瓦夹具与屋面固定
Using self- drilling screw fix trapezoidal clampon the roof. -

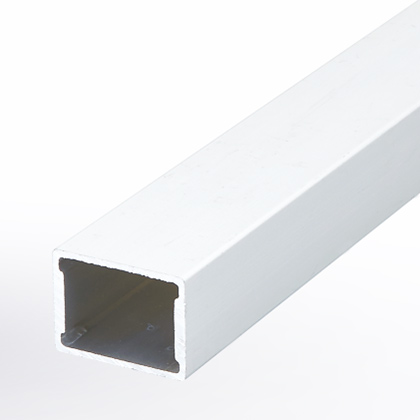

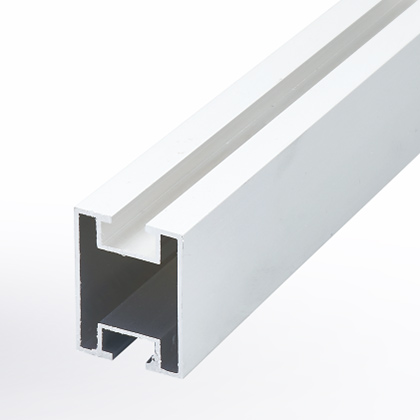

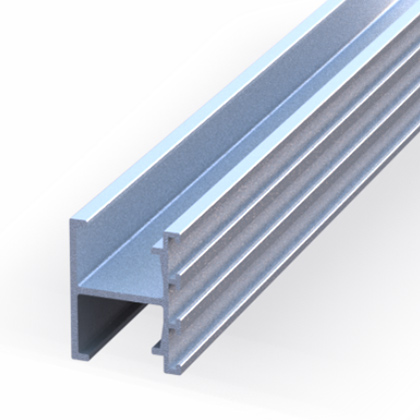

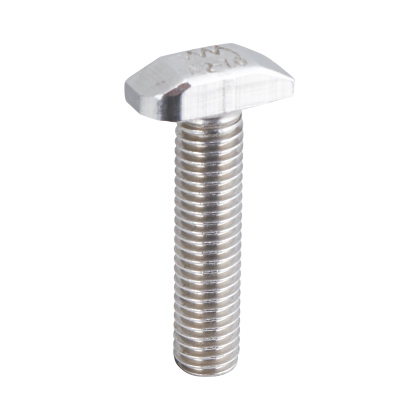

2安装导轨
Install rail. -

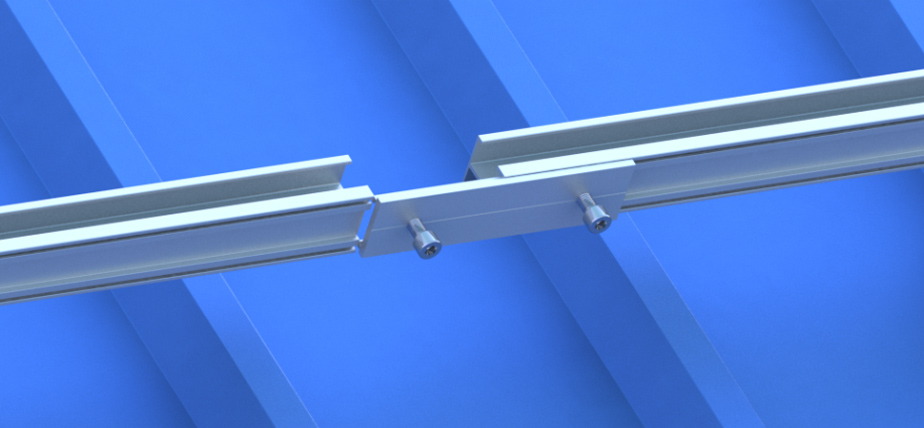

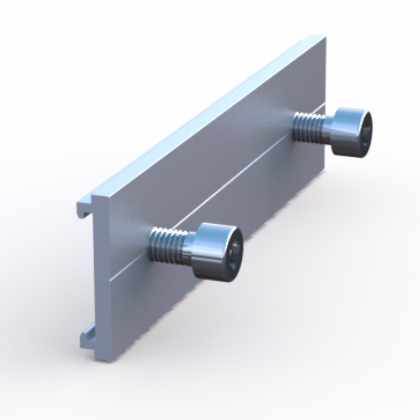

3安装导轨连接器
Install rail splice. -

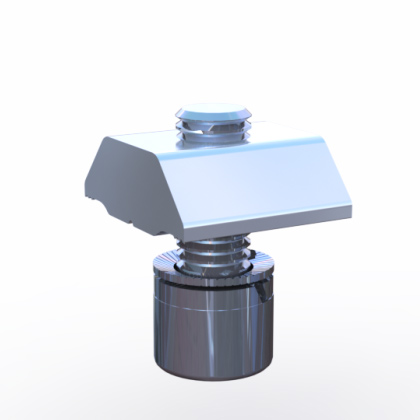

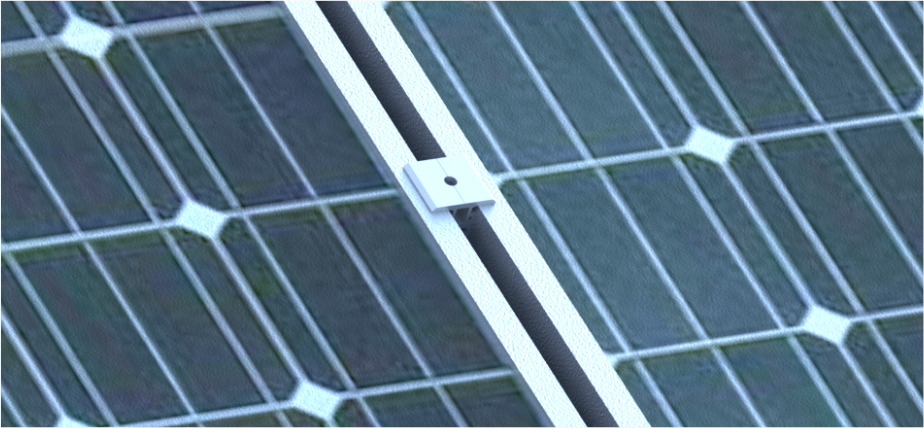

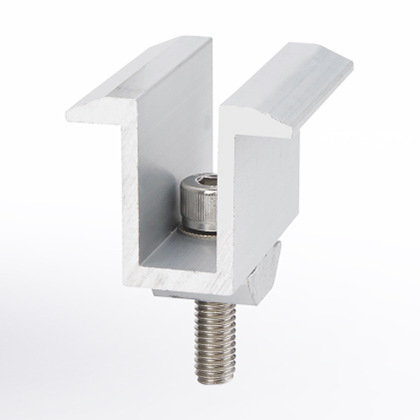

4安装组件，用中压将组件与导轨固定
Install Component, then fix them on the rail with mid clamp. -

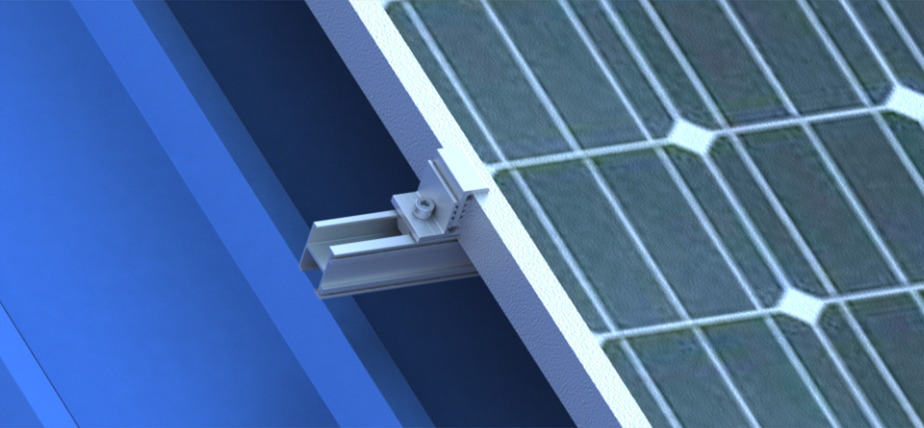

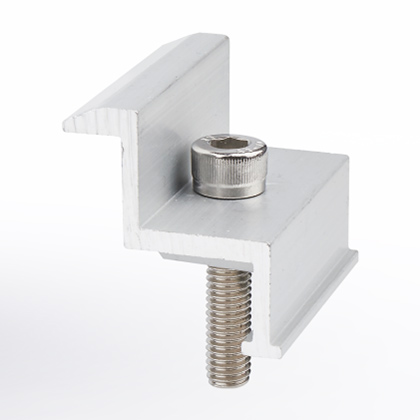

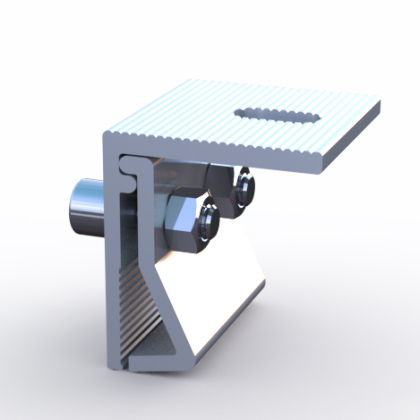

5安装组件，用侧压将组件与导轨固定
Install component, then fix them on the rail with end clamp. -

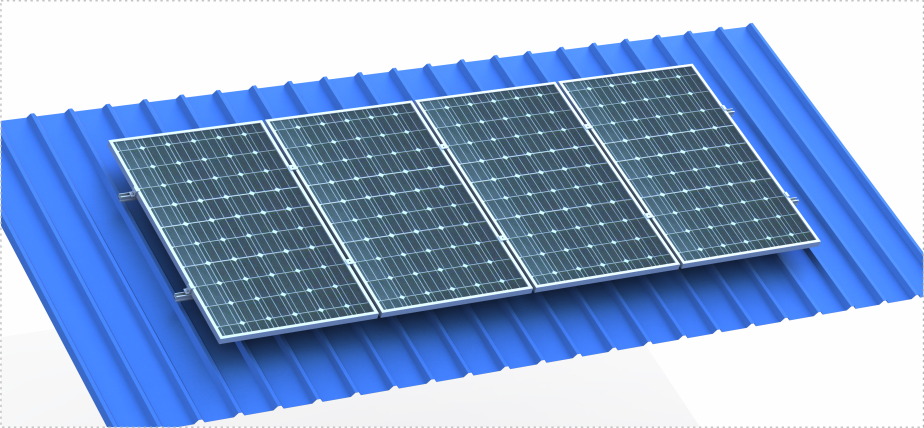

6安装完成
The installation is complete.
