琉璃瓦屋顶光伏支架系统-希玛科技集团股份有限公司

Glazed tile roof photovoltaic support system

安装地点 Installation Place	琉璃瓦或陶瓷瓦Glazedtile rooftop
安装角度 Installation Angle	与屋面平行 Parallel with Roof
风荷载 Wind Load	42m/s
雪荷载 Snow Load	1.4KN/㎡
电池板排列形式 Panels Arrangement	横向或纵向 Landscape or Portrait
设计标准 Design Standard	AS/NZS1170, DIN1055, JIS C 8955:2011
型材材质 Material	AL6005-T5（本色阳极氧化 Anodized）
紧固件材质 Fastener Material	不锈钢 Stainless Steel SUS304
配件材质 Component Material	AL6005-T5（本色阳极氧化 Anodized）,不锈钢 Stainless Steel SUS304
质保 Warranty	10年 10years

Installation setps

1
根据方案图，将需要取下的瓦片取下
According to the plan, remove the tiles that need to be removed
2
依据图纸设计，将挂钩用木螺丝固定在檩条上正确的位置。
According to the design of the drawing, fix the hook in the correct position on the purlin with wood screws.
3

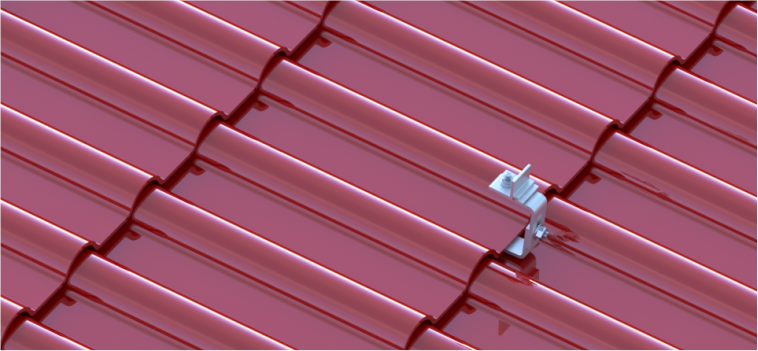

挂钩固定好后，将取下的瓦片复原
After the hook is fixed, restore the removed tiles
4

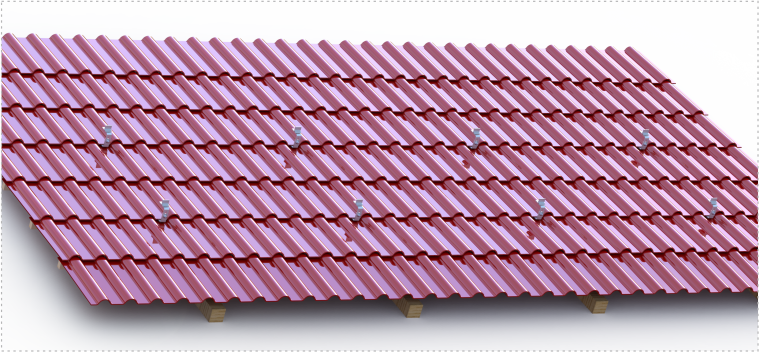

同样的方法安装其他的挂钩
Install other hooks in the same way
5

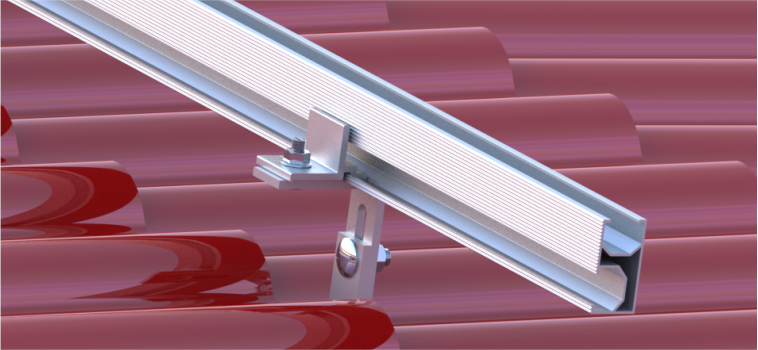

根据图纸设计尺寸，将导轨安装在挂钩上，用T型压块固定
Design the size according to the drawing, install the guide rail on the hook, and fix it with a T-shaped clamp
6

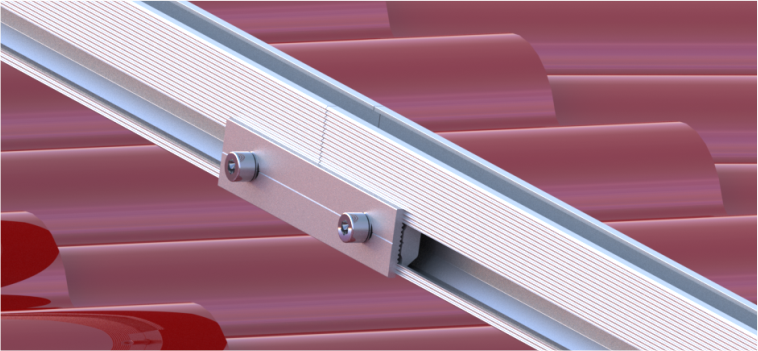

导轨如需连接，可按照上图所示进行连接
If the rails need to be connected, they can be connected as shown in the figure above
7
按照同样的方法安装其他导轨
Install other rails in the same way
8

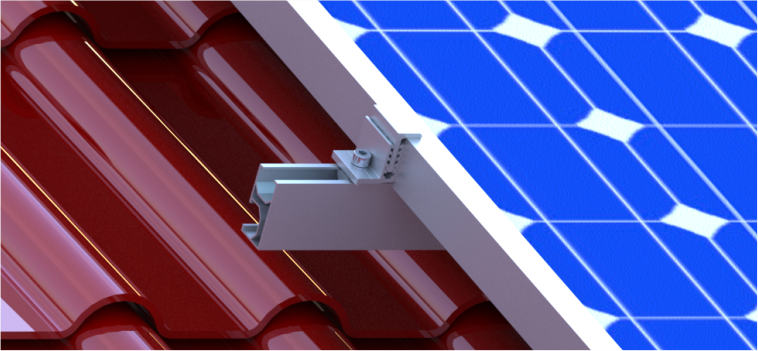

将太阳能组件放在导轨上，用侧压使其与支架固定。
Put the solar module on the guide rail and fix it with the bracket by side pressure.
9

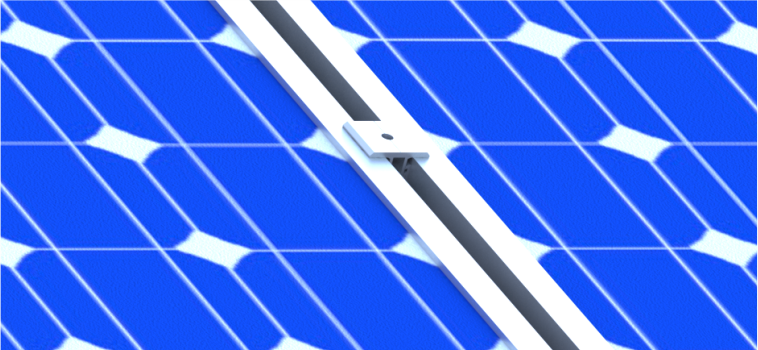

将太阳能组件放在导轨上，用中压使其与支架固定。
10
安装完成
The installation is complete
